Automatic Cleaning Dried powder Electromagnetic Separator Apply for quartz,kaolin, feldspar efficiently
Product characteristic
Large wrap angle, multi-magnetic-pole, with food grade stainless steel case and lumen
Doesn’t need to come over the gravity and resistance of the raw material.
Nonmagnetic minerals can depart from the magnetic cylinder very well.
With the mechanical vibrating equipment
Operation process
Feed the dry powder from the hopper, meanwhile make the separator state at the magnetizing and run a vibrator.
After a period ,stop feeding, cut off the magnetic device, run the other vibrator(keep the two vibrator running), poke the raffle of drain of material funnel into the iron discharge.
Then discharge the magnetic material absorbed on the magnetic media relying on the vibrating force.
Application scope
Electromagnetic dried-powder separators:It's can used in Kaolin Beneficiation,Sodium potassium feldspar Beneficiation,Quartz Beneficiation,Polarity powder material Beneficiation,active pharmaceutical ingredient(API)treatment,antibiotics treatment,paper treatment,organic chemical industry and related equipment ,Fine chemicals and related equipment.
Technical parameter
| Model | WG160B-V-3 | WG220-V-25 | WG300-V-7 | WG220B-V-11 | WG430-V-11 | WG230-V-15 | WG600-V-20 |
| Magnetic field strength(t) | 2 | 3.5 | 3 | 3 | 3 | 3 | 3 |
| Input voltage(VAC) | 380 | 220 | 380 | 380 | 380 | 380 | 380 |
| Maximun output current(A) | 15 | 47 | 20 | 20 | 20 | 30 | 40 |
| Maximum coil power(KW) | 3 | 25 | 7 | 11 | 11 | 15 | 20 |
| Insulation category | E | E | E | E | E | E | E |
| Cooling method | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling |
| Magnetic lumen diameter(mm) | 160 | 220 | 300 | 220 | 430 | 230 | 600 |
| Yield(m3/h) | 0.5-1.5 | 0.5-3 | 1.5-4 | 0.5-3 | 1.5-6 | 1-3 | 3-8 |
| Dimension(mm) | 1000*860 | 2046*1980 | 1100*1100 | 1260*1260 | 1367*1367 | 1315*1100 | 1500*1500 |
| *1718 | *1977 | *1937 | *2017 | *2017 | *1856 | *2500 |
| Main machine weight(kg) | 450 | 2080 | 1020 | 1130 | 1210 | 1500 | 2000 |
| Usage | 60-300 mesh feedstock of iron elimination |

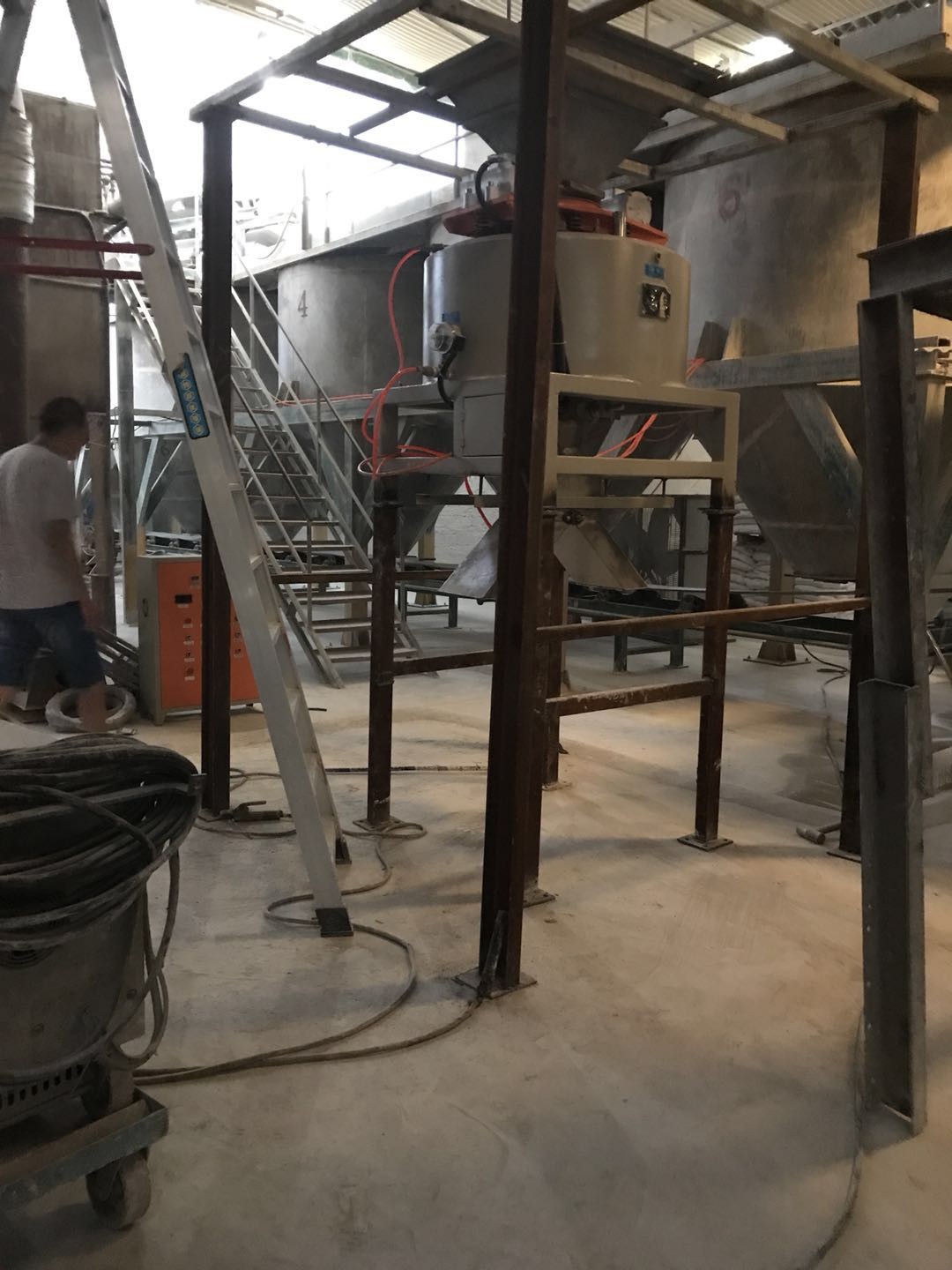

Client's processing pictures
